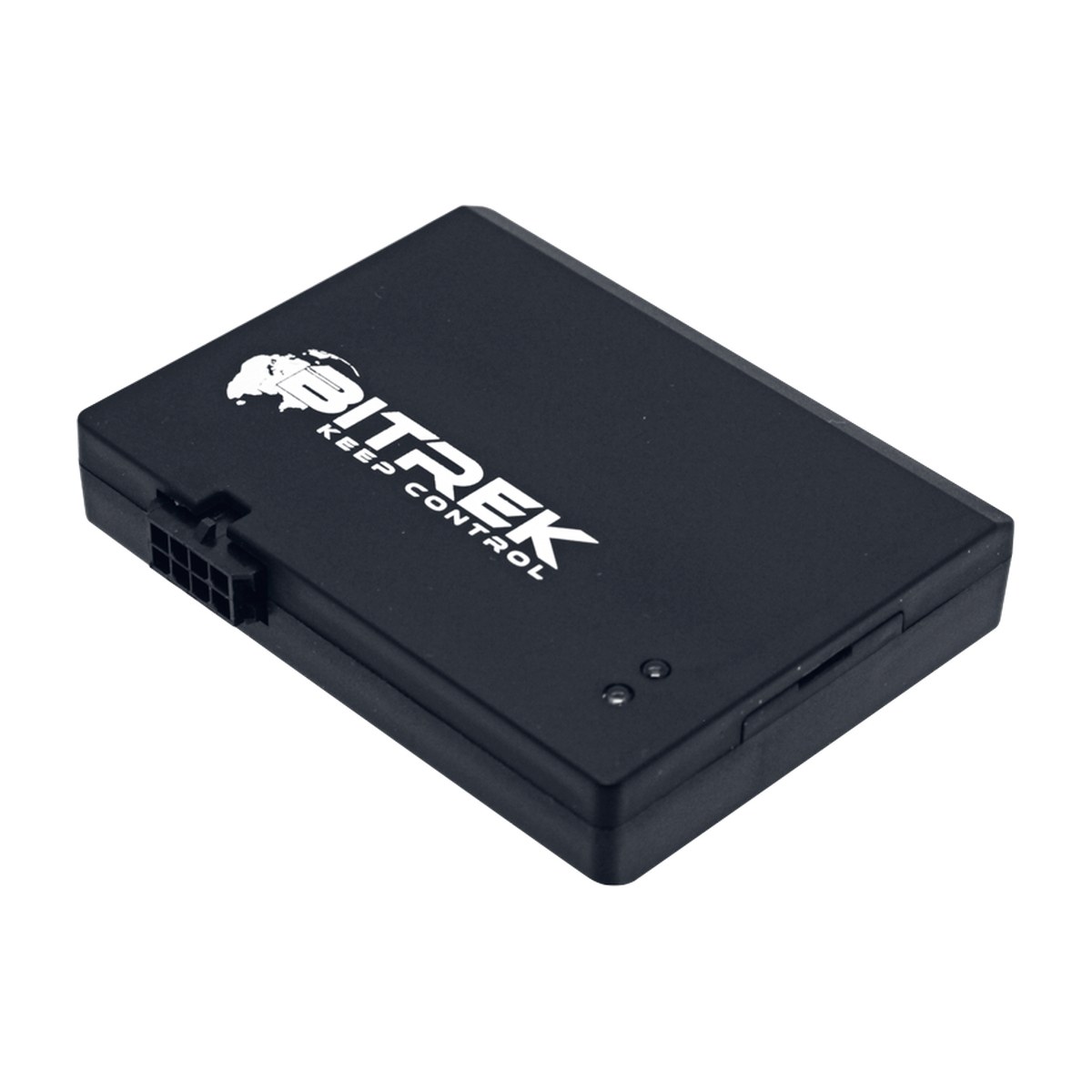

Bitrek BI 522L TREK tracker
Compact BLE tracker made in Ukraine: CAN-Log support for trucks, cars and machinery, BLE sensors, engine immobilisation, pulse flow meters and remote updates.
2,070 UAH+ Navi.zone ≈ 37 UAH/mo (billed yearly) in the app
Change installation, plan and quantity below.
What you will see in Navi.zone
Real app screens: this is how your unit will look.
Specifications
- Discrete input voltage range
- 0 V to 40 V
- Power type
- permanent
- Network standard
- GSM 850/900/1800/1900
- Communication channels
- GPRS, SMS, BLE 4.0
- GPRS class
- 10
- GPS and GSM antennas
- internal
- Navigation
- GPS or GLONASS/GPS, LBS
- Accelerometer
- yes
- Maximum discrete output load current
- 0.5 A
- SIM cards
- 1
- Discrete output type
- open collector
- Analog inputs
- 1
Description
The BI 522L TREK is a reliable, high-precision tracker for monitoring vehicle location and parameters in real time. Its accuracy and reliability make it a great fit for both private and commercial use.
The device determines the position of a moving object, receives information from connected sensors and sends the data over the mobile network. It is designed for installation in vehicles to:
- determine geographic coordinates, speed and direction of travel;
- collect data from external devices;
- control actuators;
- send data to the monitoring system.
Capabilities: improved online configurator, CAN-Log support (trucks, cars and special machinery), BLE sensor support, engine immobilisation, pulse fuel flow meter support, remote firmware and settings updates.
Read
Key specifications
Technical specifications
- Discrete input voltage range: 0 V to 40 V
- Power type: permanent
- Network standard: GSM 850/900/1800/1900
- Communication channels: GPRS, SMS, BLE 4.0
- GPRS class: 10
- GPS and GSM antennas: internal
- Navigation: GPS or GLONASS/GPS, LBS
- Accelerometer: yes
- Maximum discrete output load current: 0.5 A
- SIM cards: 1
- Discrete output type: open collector
- Analog inputs: 1
- Discrete outputs: 1
- Supply voltage: 9 V to 36 V
- Analog input voltage range: 0 V to 36 V
- Typical current draw (12 V): 40 mA
- Non-volatile memory: 4 MB (or 140,000 records)
- Built-in battery: 130 mAh
- Operating temperature: −30 °C to +80 °C
- Dimensions: 78×60×16 mm
- Weight: 55 g
- Enclosure rating: IP54
- Enclosure material: ABS plastic UL94 V0
- Relative humidity: (80±15)%
Additional information
- Country of manufacture: Ukraine
BI 522L TREK setup and connection guide
Connection
- Insert the SIM card: make sure the SIM is activated and supports GPRS, then insert it into the tracker's slot.
- Connect power: connect the tracker to a power source (9 V to 36 V) for stable operation.
- Check the LEDs: make sure the LEDs show normal operation, indicating the tracker is active.
Setup
- Connect to a computer: connect the device to a computer with a suitable cable.
- Install the software: download and install the configuration software from the manufacturer's website.
- Configure the device: open the software, select the COM port the tracker is connected to and click "Connect". Set the device parameters to suit your needs.
- Save the settings: when you have finished, save the configuration and disconnect the tracker from the computer.
Use
- Real-time tracking: connect the tracker to a monitoring system over GPRS and track your vehicle's location in real time.
- SMS commands: send commands to the tracker by SMS, for example to request the current coordinates or change settings.
The BI 522L TREK is a reliable, effective solution for managing and controlling vehicles, improving safety and logistics. You can also browse our range of fuel level sensors in the GPSka store.
Similar models

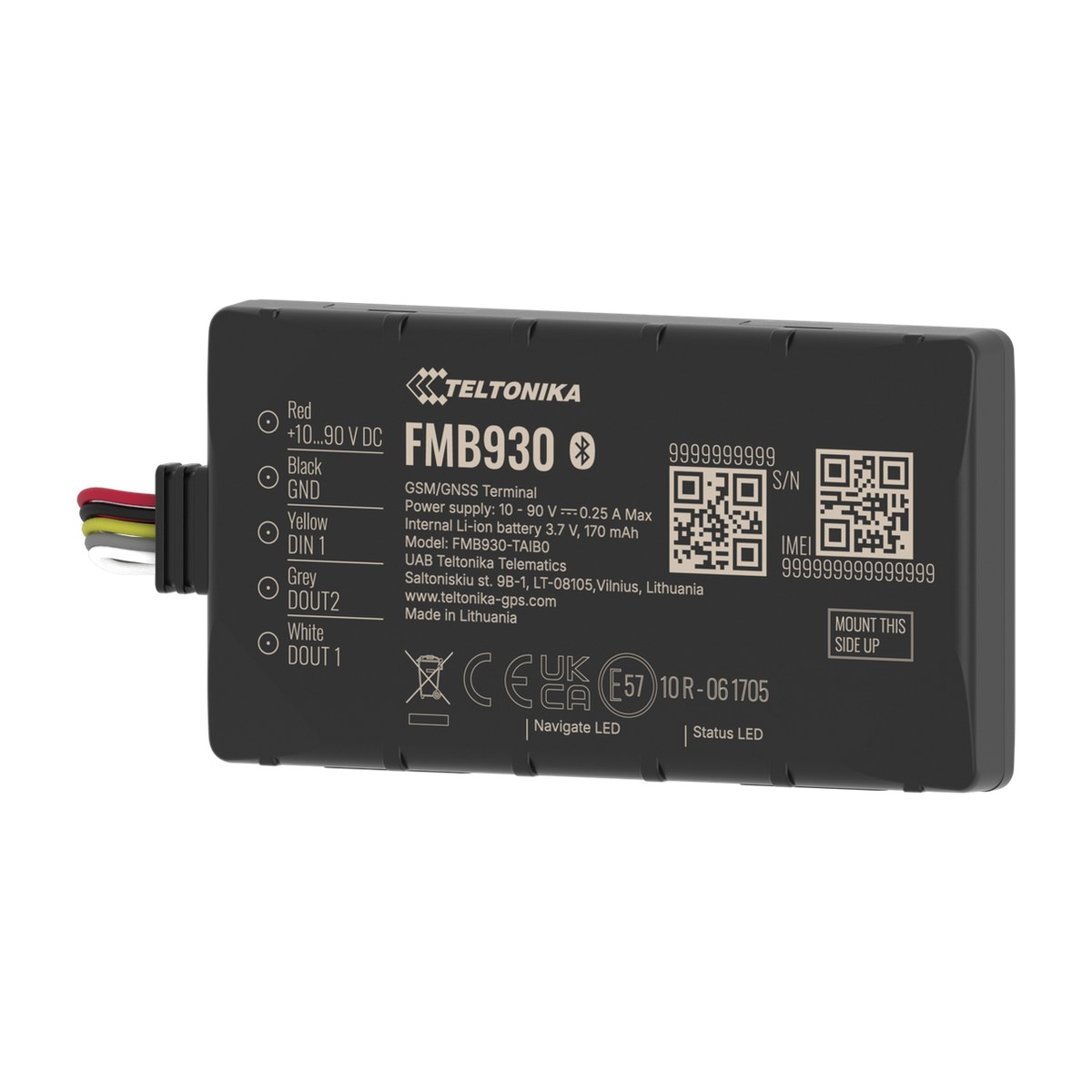

Teltonika · Mopeds and e-mobility Teltonika FMB930, up to 90 V
For e-vehicles and motorcycles
2,099 UAH+ Navi.zone ≈ 37 UAH/mo (billed yearly) in the app

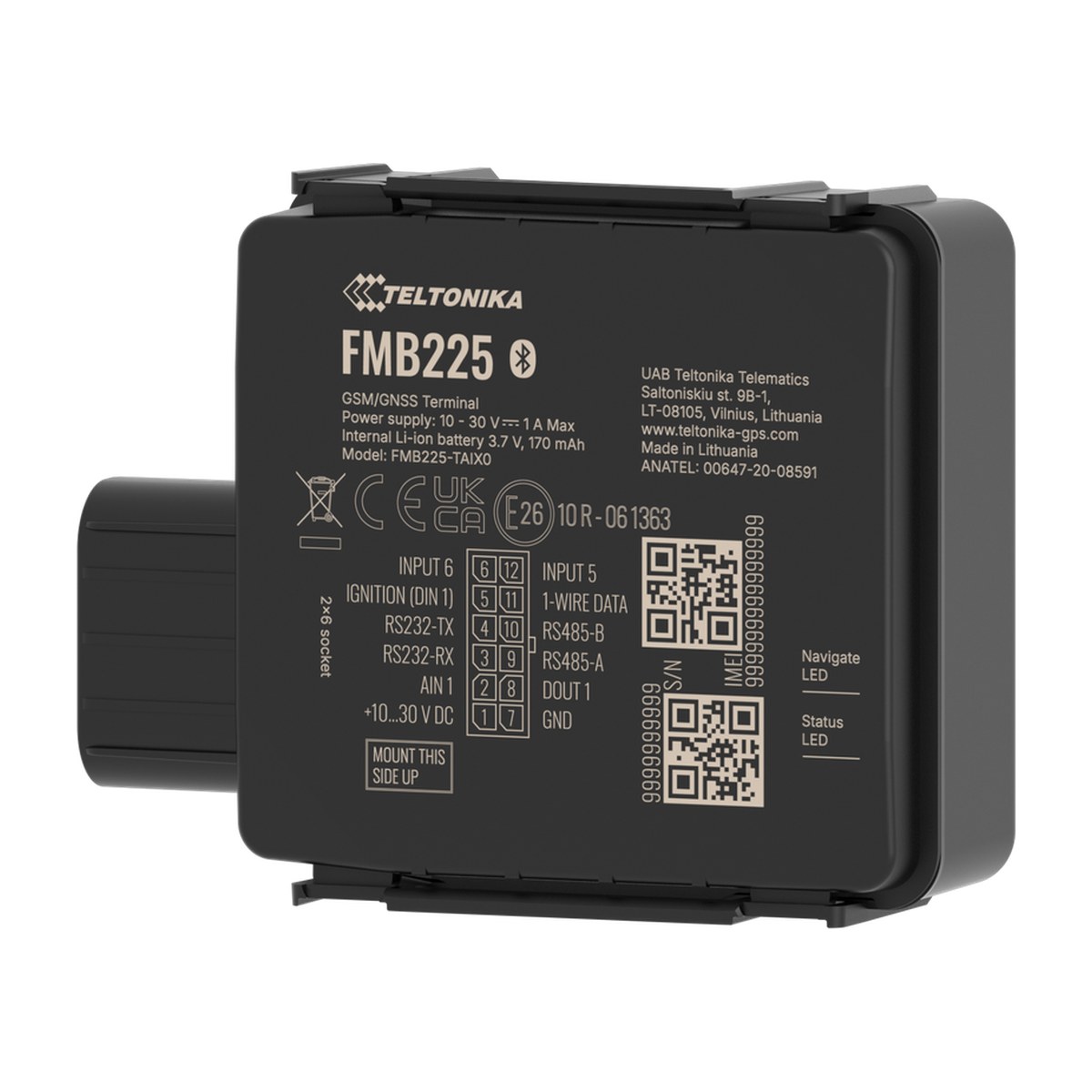

Teltonika · Cars and taxis Teltonika FMB225
Rugged IP67 case
2,699 UAH+ Navi.zone ≈ 37 UAH/mo (billed yearly) in the app

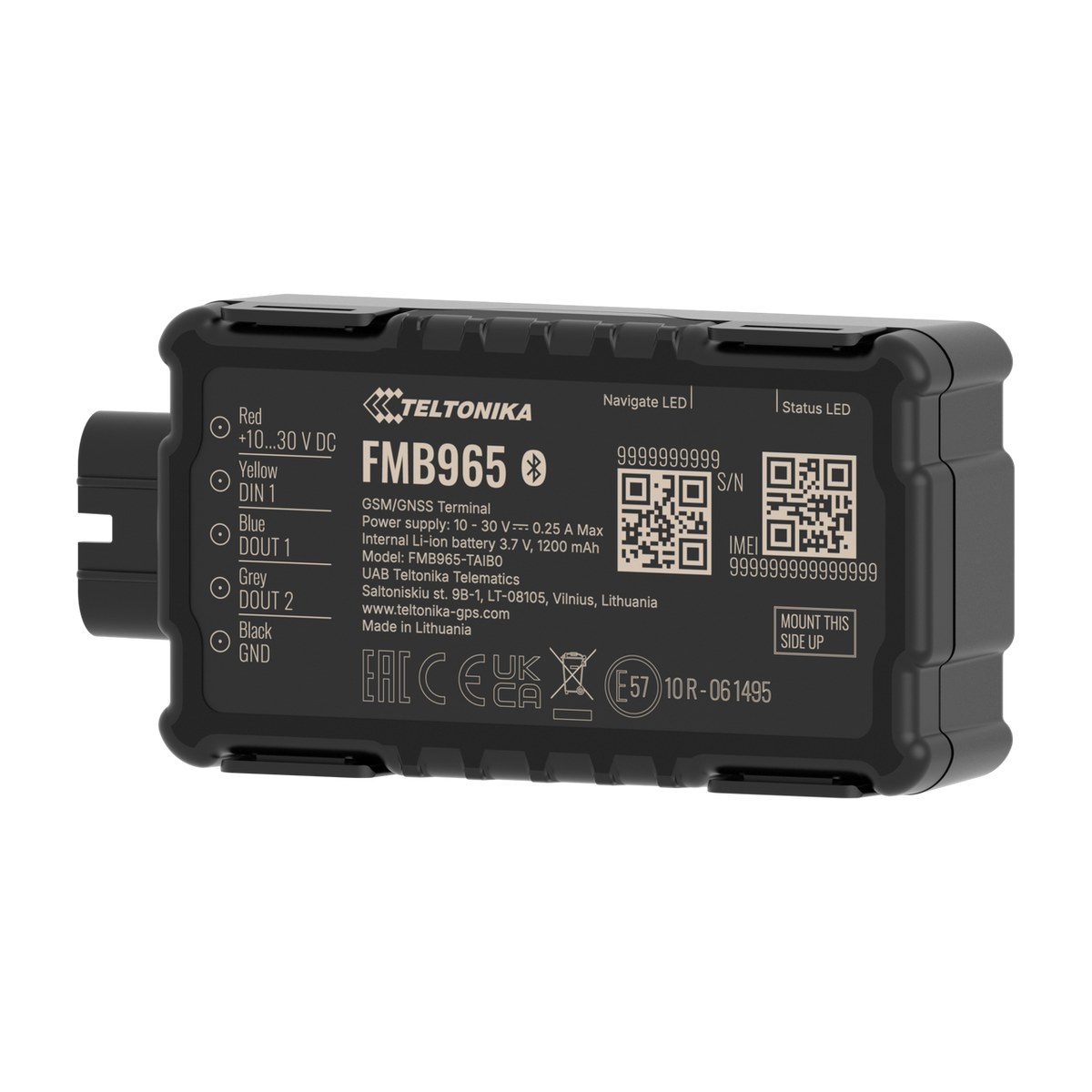

Teltonika · Generators, trailers, people Teltonika FMB965
IP67, 1200 mAh battery
2,926 UAH+ Navi.zone ≈ 37 UAH/mo (billed yearly) in the app
Bitrek · Cars and taxis Bitrek BI 868 TREK
Car tracker for hidden installation
3,600 UAH+ Navi.zone ≈ 37 UAH/mo (billed yearly) in the app

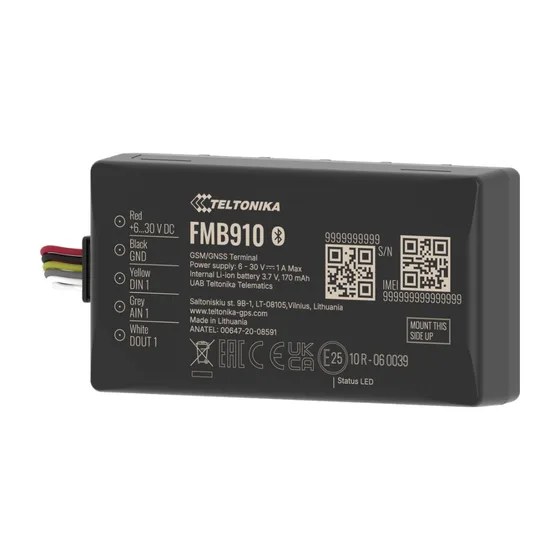

Teltonika · Cars and taxis Teltonika FMB910
Compact tracker for basic vehicle tracking and protection. Available to order, delivery up to 30 days.
1,909 UAH+ Navi.zone ≈ 37 UAH/mo (billed yearly) in the app

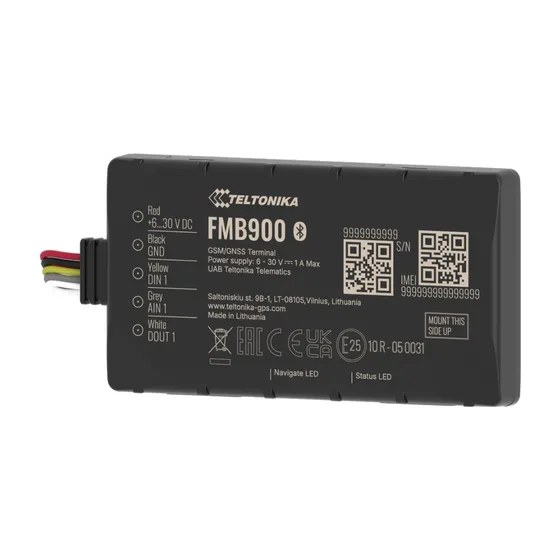

Teltonika · Cars and taxis Teltonika FMB900
Low-cost compact tracker for simple vehicle tracking and security. Available to order, delivery up to 30 days.
1,909 UAH+ Navi.zone ≈ 37 UAH/mo (billed yearly) in the app

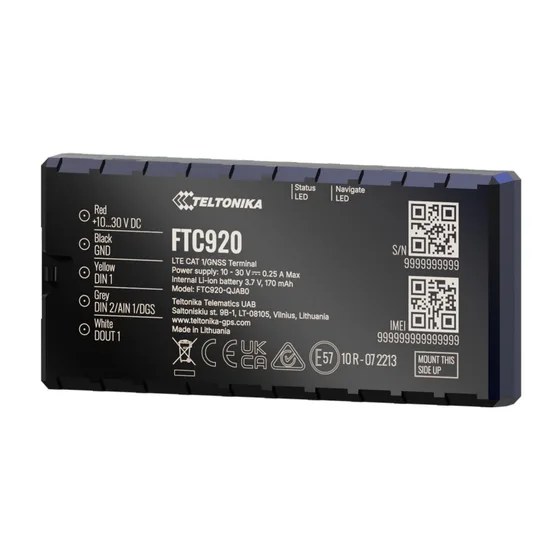

Teltonika · Cars and taxis Teltonika FTC920
Compact 4G anti-theft tracker for cars and vans. Available to order, delivery up to 30 days.
2,709 UAH+ Navi.zone ≈ 37 UAH/mo (billed yearly) in the app
BI 522L TREK in brief
Do I need a plan?
Yes, without a platform the tracker shows nothing. Navi.zone Base is ≈ 446 UAH a year per vehicle, bought in the app via App Store or Google Play, 7 days free. For fuel, CAN and SENT there is Wialon at 195 UAH a month.
How long does installation take?
30–60 minutes per car. The installer hides the tracker and checks the connection with you. Or fit it yourself or at a garage; we ship it preconfigured by Nova Poshta.
Which SIM card do I need?
For Navi.zone Base and Pro, your own SIM from any carrier; we set the tracker up for it. For Navi.zone Business, our SIM cards under contract.
What warranty?
Manufacturer warranty on the tracker and 14-day returns.
